Frame & Fork
Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5mm QR
Fork: FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Wheels & Tyres
Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Front Skewer: 139x5 mm bolt-on
Rear Skewer: 152 x 5 mm QR
Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyres: Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm

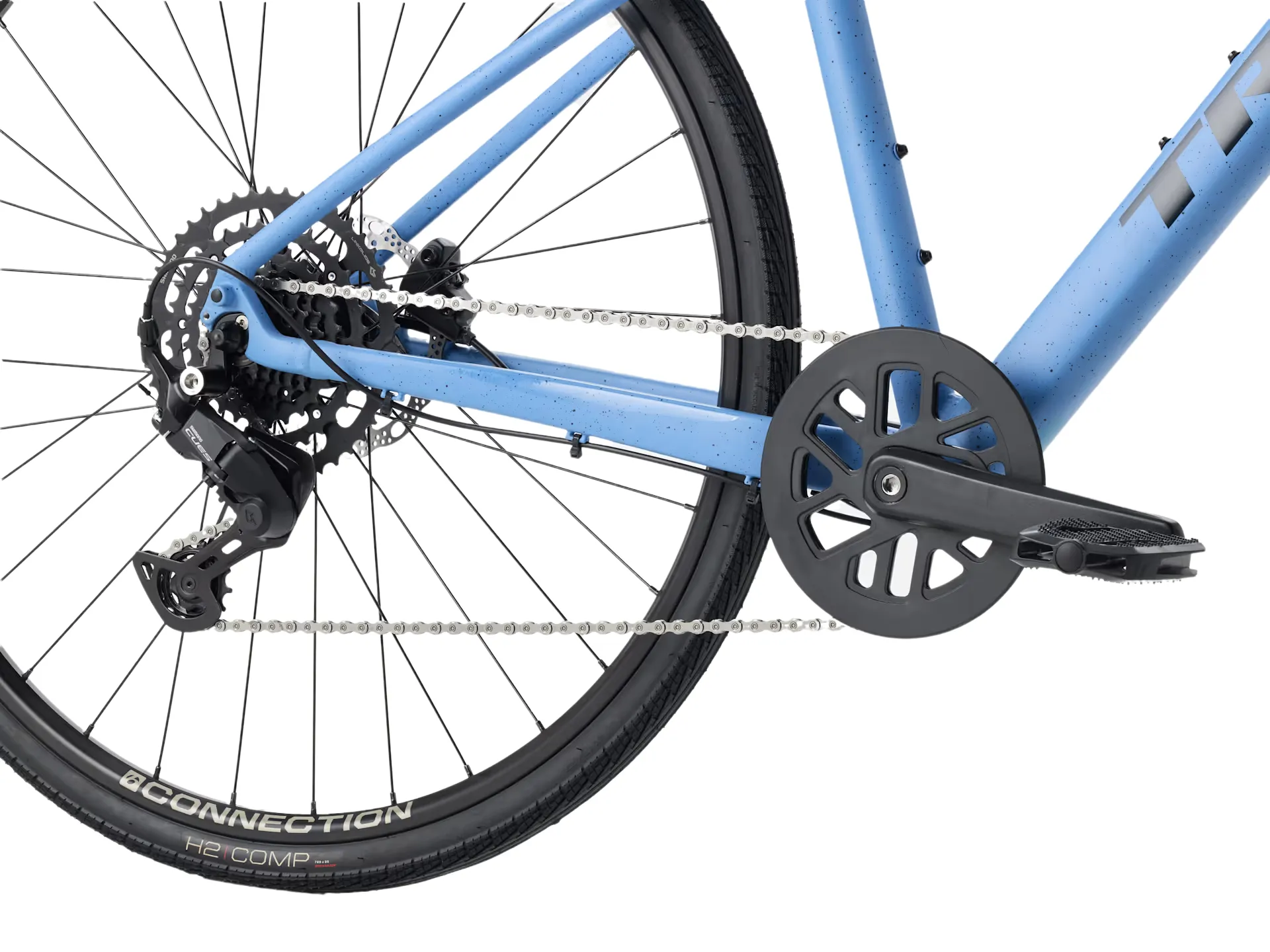

Gears & Drivetrain
Shifters: Shimano U4000, 9-speed
Rear Derailleur: Shimano CUES U4000
Chainset: ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length
Bottom Bracket: Sealed cartridge, 68 mm
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500

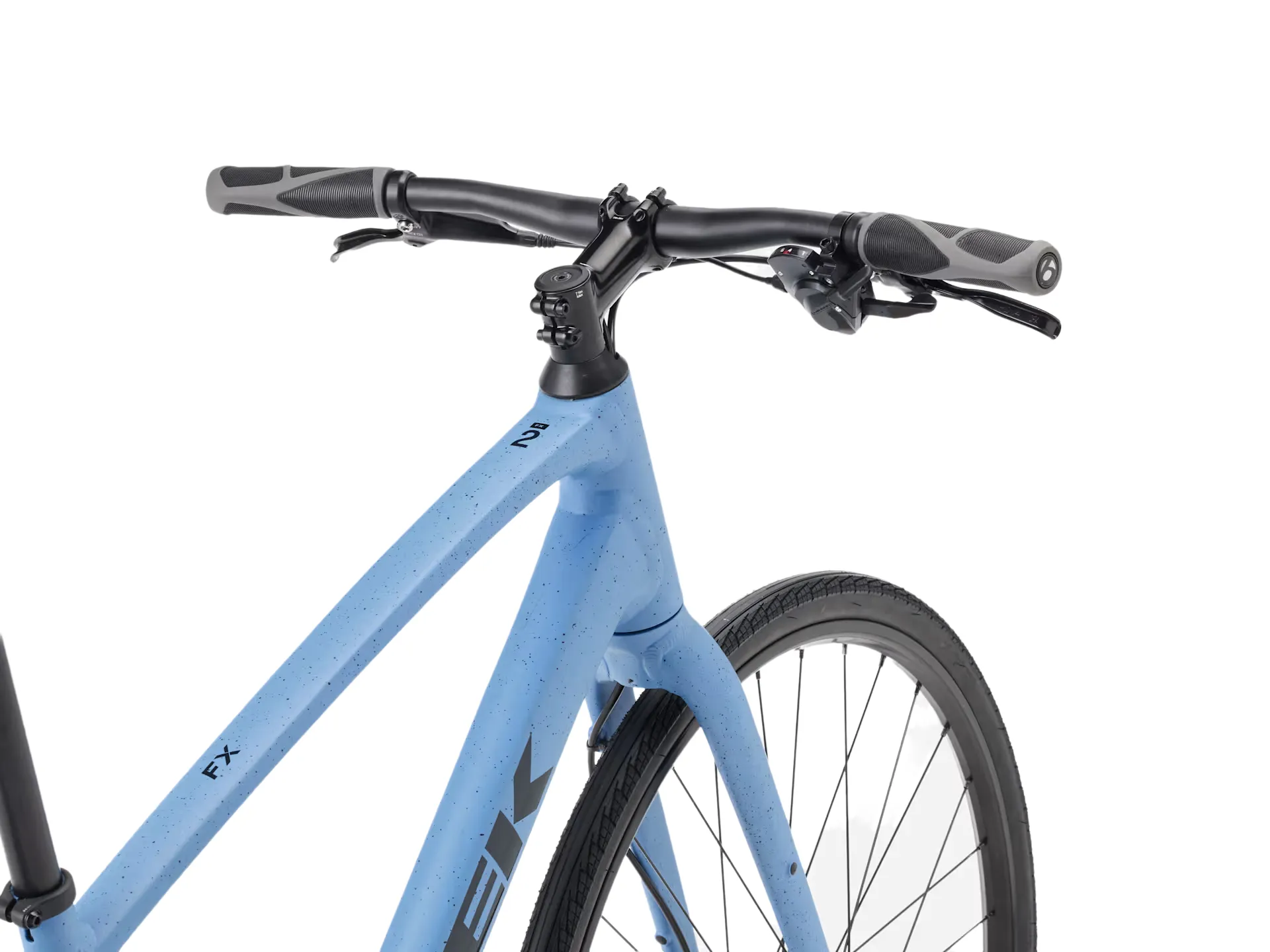

Components
Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise
Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree
Grips: Trek Line Ergonomic Comp, lock-on
Saddle: Bontrager Sport
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset
Brakes
Brakes: Tektro HD-R280 hydraulic disc
Rotors: Tektro wave, 6-bolt, 160 mm
Weight
Weight: M - 12.10 kg / 26.68 lbs
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
