Specifications
Frameset
Frame: OCLV Mountain Carbon, IsoSpeed, tapered head tube, internal derailleur routing, balanced post-mount brake, Boost148, 12 mm thru axle
Fork: RockShox Recon Gold, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Wheels
Front Hub: Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15 mm thru axle
Rear Hub: Bontrager alloy, sealed bearing, CenterLock, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23 mm width, Presta valve
Tyres: Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 27.5x2.20"
Drivetrain
Shifters: Shimano SLX M7100, 12 Speed
Front Derailleur: N/A
Rear Derailleur: Shimano XT M8100, Long Cage, 51T Max Cog

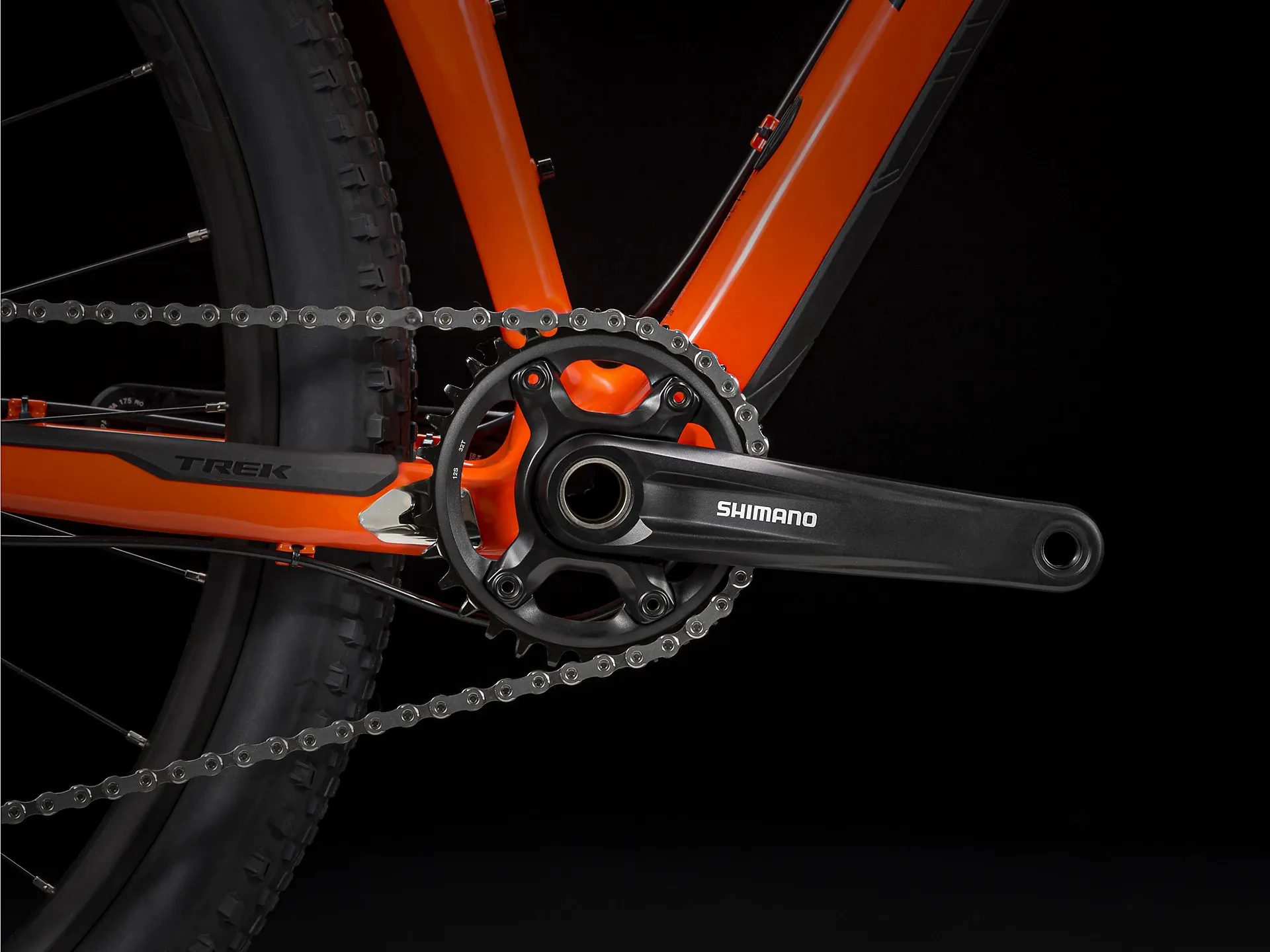

Crank: Shimano MT610, 30T Steel Ring, Boost
Bottom Bracket: Shimano MT500, 92mm, PressFit
Cassette: Shimano SLX M7100, 10-51, 12 Speed
Chain: Shimano SLX M7100, 12 Speed
Components
Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost: Bontrager Approved, 31.6mm, 8mm offset
Handlebar: Bontrager Comp, alloy, 31.8mm, 5mm rise
Stem: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree
Grips: Bontrager XR Trail Comp, nylon lock-on
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Brakes
Brakes: Shimano Hydraulic Disc, MT400 Caliper
Brake Levers: Shimano MT401 Levers
Weight
Weight: M – 11.05 kg / 24.36 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
