Frame & Fork
Frame: 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle

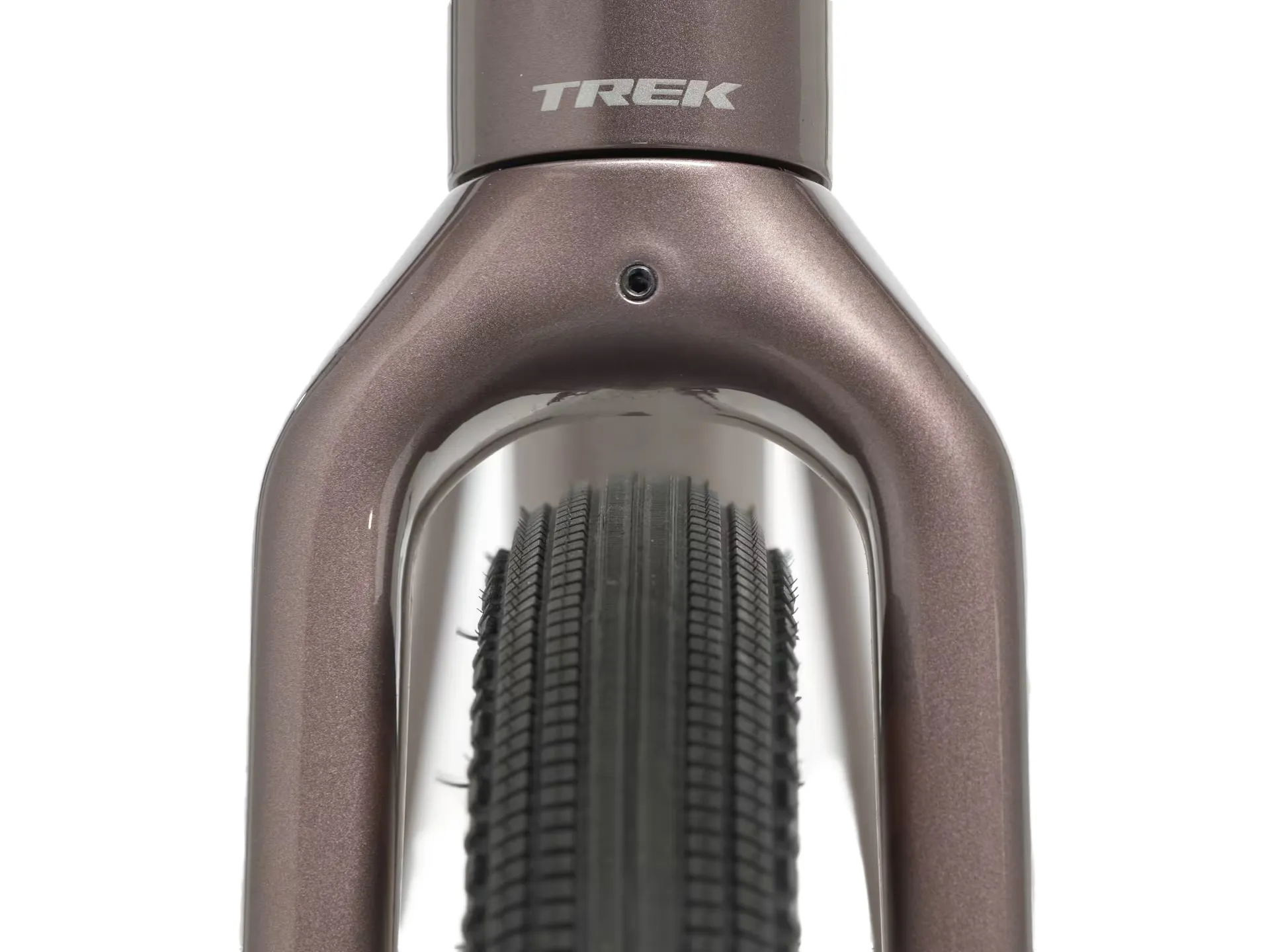

Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Wheels & Tyres
Front Hub: Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
Rear Hub: Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Front Skewer: Bontrager Switch chamfered thru axle, removable lever
Rear Skewer: Bontrager Switch chamfered thru axle, removable lever
Rims: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyres: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Sealant: Bontrager TLR sealant, 180 ml/6 oz

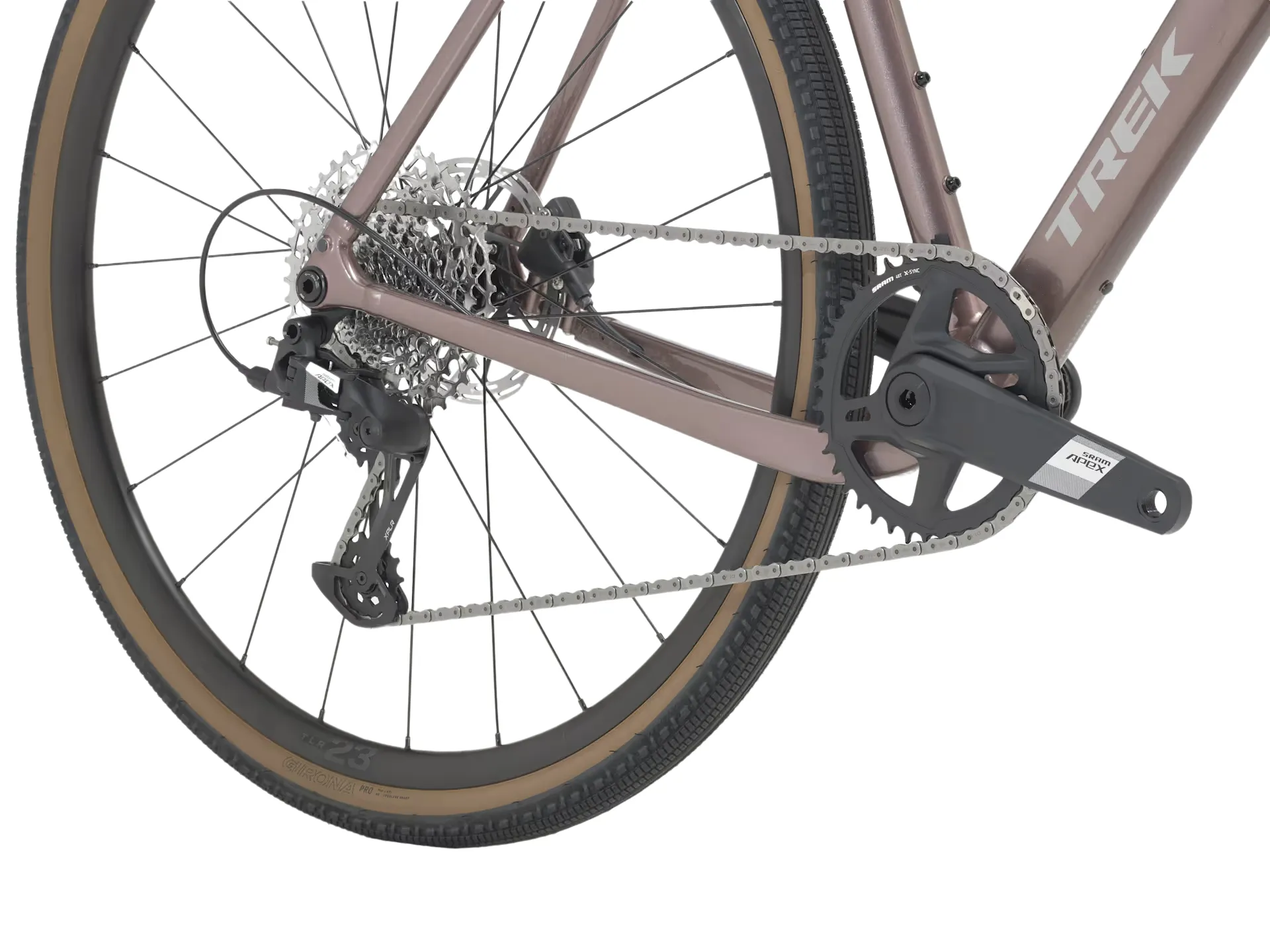

Gears & Drivetrain
Shifter: SRAM Apex, 12 speed
Rear Derailleur: SRAM Apex XPLR, 44T max cog
Crank: SRAM Apex 1, 40T, DUB Wide
Bottom Bracket: SRAM DUB Wide, T47 threaded, internal bearing
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Brakes
Brake Calipers: SRAM Apex D1 hydraulic disc, flat mount
Brake Rotors: SRAM Paceline, rounded, CentreLock, 160 mm
Brake Levers: SRAM Apex, 12 speed
Components
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

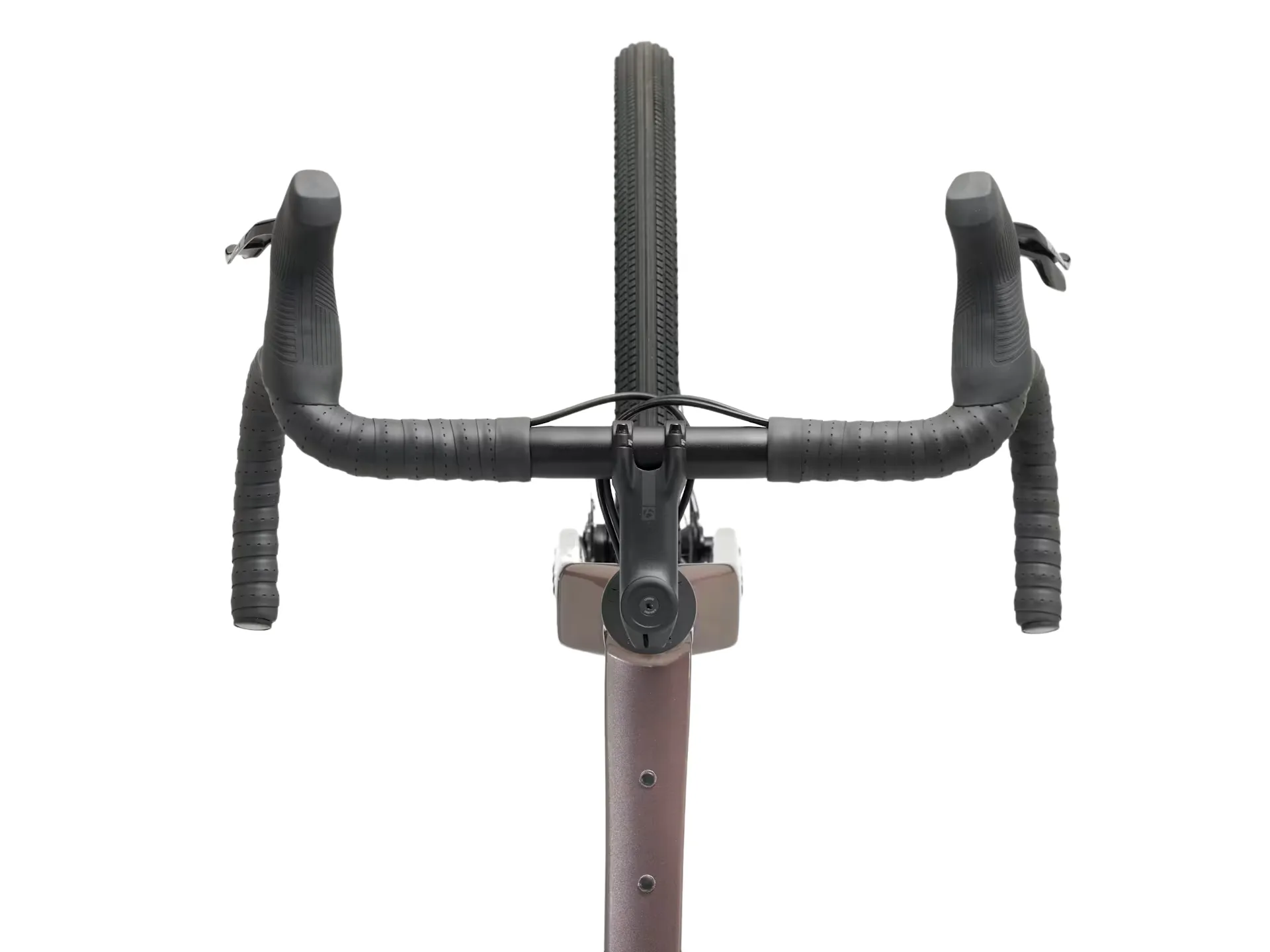

Handlebar: Bontrager Elite Gravel, alloy,
Handlebar Tape: Bontrager Supertack Perf tape
Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Weight
Weight: ML – 9.87 kg/21.76 lb (with TLR sealant, no tubes)
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
